Distribution box fixed without bottom box

A distribution box fixed without a bottom box can be safely installed using a mounting plate and proper wall support, ensuring electrical safety and structural stability.

Understanding the Box Design

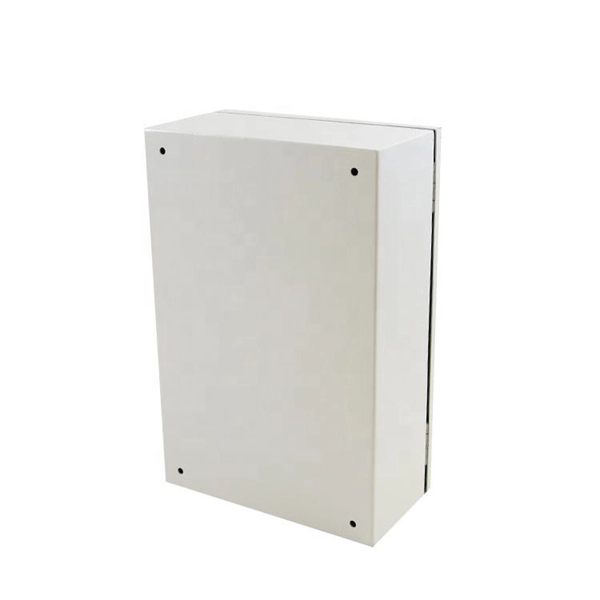

Some distribution boxes, especially metal or IP65-rated outdoor models, come without a full bottom enclosure and instead feature a mounting plate fixed to the bottom of the cabinet . This design allows for flexible installation, easier cable entry, and adaptation to different mounting surfaces. The box itself is typically robust, made of steel or ABS plastic, and may include a rubber gasket for water and dust protection .

Mounting Considerations

1. Wall Mounting: Secure the box to a solid wall using appropriate anchors or screws. Ensure the wall can support the weight of the box and the electrical components inside .
2. Mounting Plate Usage: The internal mounting plate serves as the base for attaching circuit breakers, RCDs, or other electrical components. Even without a bottom box, the plate provides structural support for the equipment .
3. Cable Entry: Use the perforations or knockouts provided in the box for cable entry. Ensure that cables are properly sealed with grommets or cable glands to maintain IP protection, especially for outdoor installations .
4. Level and Alignment: Check that the box is level and aligned before securing it. This prevents stress on the mounting plate and ensures proper door closure and gasket sealing .

Safety and Compliance

• Electrical Standards: Follow local electrical codes and standards (e.g., DIN VDE 0100 in Germany) for low-voltage installations, grounding, and protection against electric shock .
• Protection Devices: Install circuit breakers, RCDs, and surge protection devices on the mounting plate to ensure safety even if the box lacks a bottom enclosure .
• Environmental Protection: For outdoor or damp locations, ensure the box maintains its IP rating (e.g., IP65) by sealing all openings and using the supplied rubber gasket .

Practical Tips

• If additional support is needed, consider adding a backplate or bracket behind the box to distribute weight evenly.
• Avoid overloading the mounting plate with heavy components; check the manufacturer's weight limits.
• Regularly inspect the box for corrosion, loose screws, or compromised seals, especially in outdoor environments .

By following these guidelines, a distribution box without a bottom box can be safely and effectively installed, maintaining both structural integrity and electrical safety.
