Where is the most suitable place to install a network patch panel

A network patch panel is typically installed in a server rack or network cabinet, positioned close to the switches it serves for efficient cable management and accessibility.

Recommended Placement

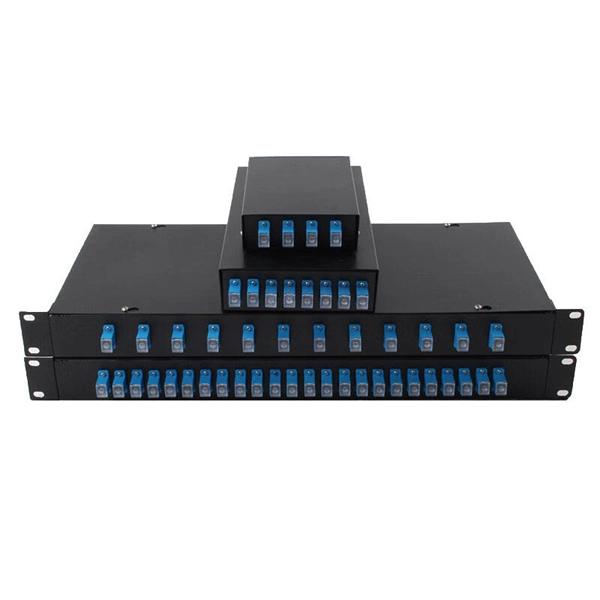

Server Rack or Network Cabinet: Patch panels are usually mounted on a standard 19-inch server rack or network cabinet. They should be installed near the network switches they connect to, minimizing cable lengths and maintaining signal integrity . Rack Positioning: The patch panel can be installed at the top, middle, or bottom of the rack, depending on how cables enter the rack (from the top, bottom, or side) and the overall rack layout . A common best practice is to place a 1U horizontal cable manager between the patch panel and the switch, creating a clean and organized cabling path . Accessibility: Ensure the patch panel is in a safe and accessible location for technicians to perform maintenance, testing, or future expansions . Avoid placing it in areas that are difficult to reach or obstructed by other equipment.

Cable Management Considerations

• Cable Entry: Plan whether cables will enter the rack from the top, bottom, or sides, and route them accordingly to the rear of the patch panel .
• Separation from Power Cables: Keep data cables separate from power lines to reduce electromagnetic interference (EMI) .
• Use of Cable Managers: Vertical and horizontal cable managers help organize bulk wiring along the sides of the rack, keeping cables clear of equipment fans and airflow paths .
• Labeling: Label each cable at both ends to simplify troubleshooting and future network changes .

Environmental Considerations

• Ventilation: Install the patch panel in a well-ventilated area to prevent heat buildup from nearby active devices like switches .
• Distance to Devices: Ensure the patch panel is within the maximum cable length limits (e.g., 100 meters for Cat5e/Cat6) from connected devices to avoid signal degradation . By following these guidelines, the patch panel will be centrally located, easily accessible, and integrated into a structured cabling system, ensuring efficient network management and reliable performance.
