How to install a residual current device RCD in a distribution box

Installing an RCD in a distribution box involves selecting the correct type, safely connecting the phase and neutral wires, and ensuring proper integration with circuit breakers and busbars.

Step 1: Safety First

Before starting, disconnect the main power supply to the distribution board to prevent electric shock. Use insulated tools and wear protective equipment. Verify that the power is off using a voltage tester.

Step 2: Select the Appropriate RCD

Choose an RCD based on:

• Type (Type AC, A, F, or B) depending on the waveform and load characteristics of your system .
• Rated residual current (commonly 30 mA for personal protection).
• Rated current to match the load of the circuits it will protect .

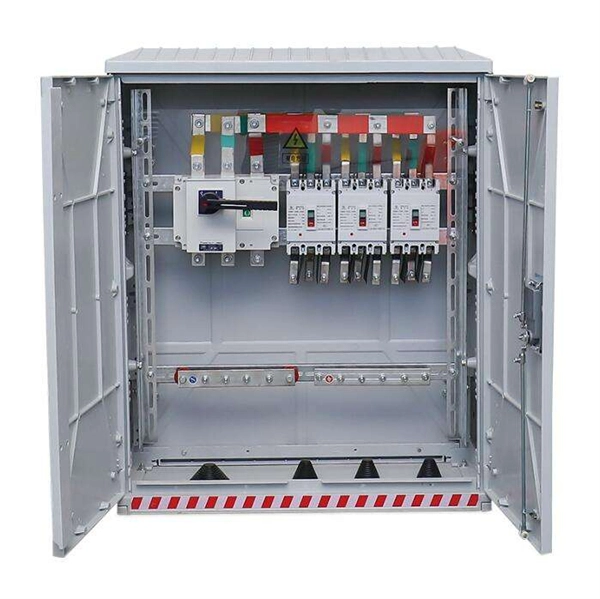

Step 3: Identify the Distribution Board Layout

A typical distribution board includes:

• Main isolator or double-pole MCB (DP)
• RCD (also usually double-pole)
• Single-pole MCBs for individual circuits
• Busbars for neutral and earth connections

Step 4: Wiring the RCD

1. Connect the incoming phase (live) and neutral wires from the main supply to the input terminals of the RCD .
2. Connect the outgoing phase wires from the RCD to the individual circuit breakers.
3. Connect the outgoing neutral wires to the neutral busbar.
4. Ensure the earth wires are properly connected to the earth busbar.
5. For three-phase systems, connect all three phases and the neutral to the RCD input, and distribute the output to the respective breakers .

Step 5: Mounting the RCD

• Secure the RCD on the DIN rail inside the distribution box.
• Ensure it is positioned for easy access to the test button for monthly functionality checks .

Step 6: Testing and Commissioning

• After wiring, restore power and press the RCD test button to simulate a fault. The RCD should trip immediately, cutting off the power .
• If the RCD does not trip, recheck wiring and connections.
• Label the RCD and associated circuits clearly for safety and maintenance.

Step 7: Maintenance

• Test the RCD monthly to ensure proper operation.
• Inspect for signs of wear, corrosion, or repeated tripping, which may indicate wiring issues or faulty appliances . By following these steps, the RCD will provide effective protection against electric shocks and residual current faults, ensuring safety for both people and electrical equipment.
