Ground-mounted fiber optic cable junction box

A ground-mounted fiber optic junction box is a protective enclosure designed to house, organize, and manage fiber optic cables outdoors, providing secure splicing, distribution, and environmental protection.

Overview

Ground-mounted fiber optic junction boxes, also known as fiber splice closures, outdoor distribution boxes, or handholes, serve as central points for connecting, splicing, and distributing fiber optic cables in outdoor networks such as FTTH (Fiber to the Home), FTTB (Fiber to the Building), and FTTC (Fiber to the Curb) deployments . They protect delicate fibers from environmental hazards including moisture, UV exposure, physical impact, and temperature fluctuations .

Types and Configurations

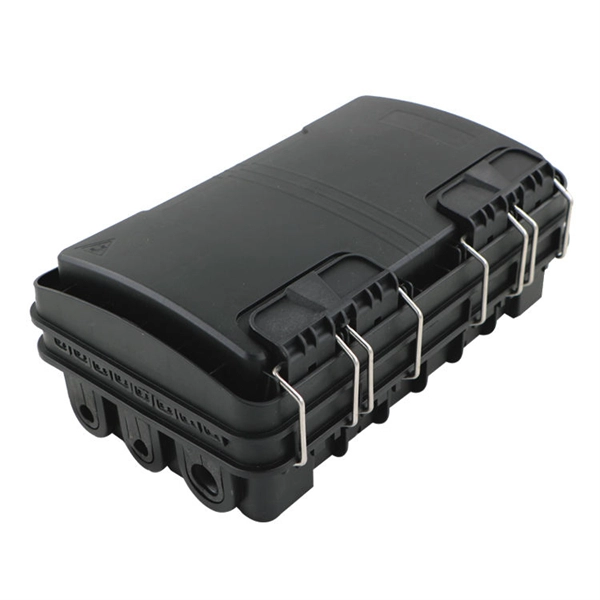

• Outdoor Junction Boxes: Weatherproof enclosures suitable for surface or ground installation, often rated IP54 or higher for water and dust resistance .
• Dome Closure Boxes: Dome-shaped enclosures for aerial or underground applications, providing robust protection against environmental contaminants .
• Underground Vaults/Handholes: Larger polymer concrete, fiberglass, or HDPE enclosures installed below ground to house multiple fiber splices, innerducts, and slack loops for future expansion or repairs .
• Demarcation Boxes: Serve as the interface between customer premises equipment and the public network, often including space for splitters, adapters, and slack storage .

Materials

• Polymer Concrete: Extremely durable, water-resistant, and suitable for heavy-duty applications; requires heavy equipment for installation .
• Fiberglass Reinforced Polymer (FRP): Lighter than polymer concrete, durable, and easier to handle for installation .
• High-Density Polyethylene (HDPE): Lightweight, easily movable, and still capable of supporting Tier 22 traffic ratings with modifications .
• Plastic or UV-Resistant Thermoplastics: Common for smaller outdoor boxes, providing protection against UV and moisture .

Features

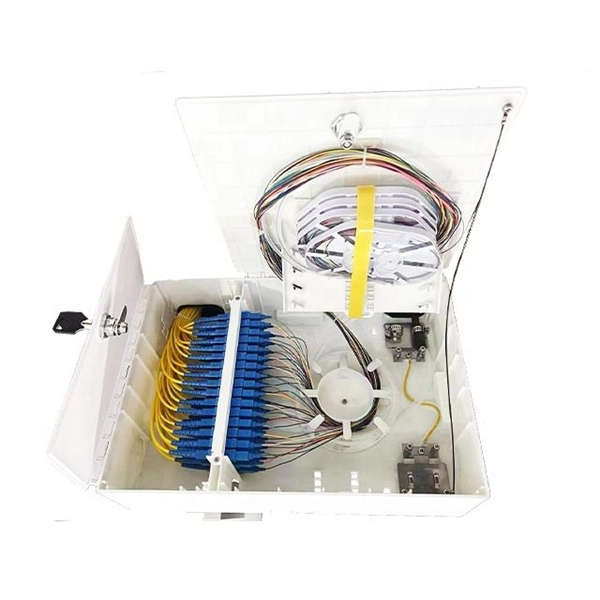

• Splice Trays: Organize and protect fiber splices.
• Cable Management: Includes entry/exit points, spooling mechanisms, and bend radius protection.
• Adapters and Connectors: Supports SC, LC, ST, or MTP/MPO connectors for singlemode or multimode fibers .
• Environmental Protection: Sealed against dust, water, and UV; some models are lockable for security .
• Capacity: Varies from small 2-port boxes to large vaults accommodating hundreds of fibers .

Installation Considerations

• Placement: Typically installed every 500–1000 feet along fiber routes for splicing and slack management .
• Mounting: Can be surface-mounted, pole-mounted, or buried underground depending on network design and environmental conditions .
• Future Expansion: Many boxes allow additional adapters, splitters, or splice trays to accommodate network growth .

Applications

• Telecommunications Networks: Connect and manage fiber optic cables in public and private networks.
• Data Centers and Campus Networks: Organize high-density fiber connections.
• Residential and Commercial FTTH Deployments: Terminate and distribute fiber connections to homes or buildings.
• Industrial Environments: Provide reliable communication networks in manufacturing or utility facilities . Ground-mounted fiber optic junction boxes are essential for reliable, high-performance outdoor fiber networks, offering protection, organization, and scalability for both current and future network needs.
